Product Description:
The YA-D400 series point type gas detectors are an essential safety measure for a range of industries such as chemical, petroleum, metallurgy, liquefied gas stations, painting operations, gas transmission and distribution.
These detectors are designed to detect toxic and combustible gases in indoor and outdoor areas that are prone to leakage. They are reliable in their ability to detect potentially dangerous situations and prevent any mishaps from occurring.

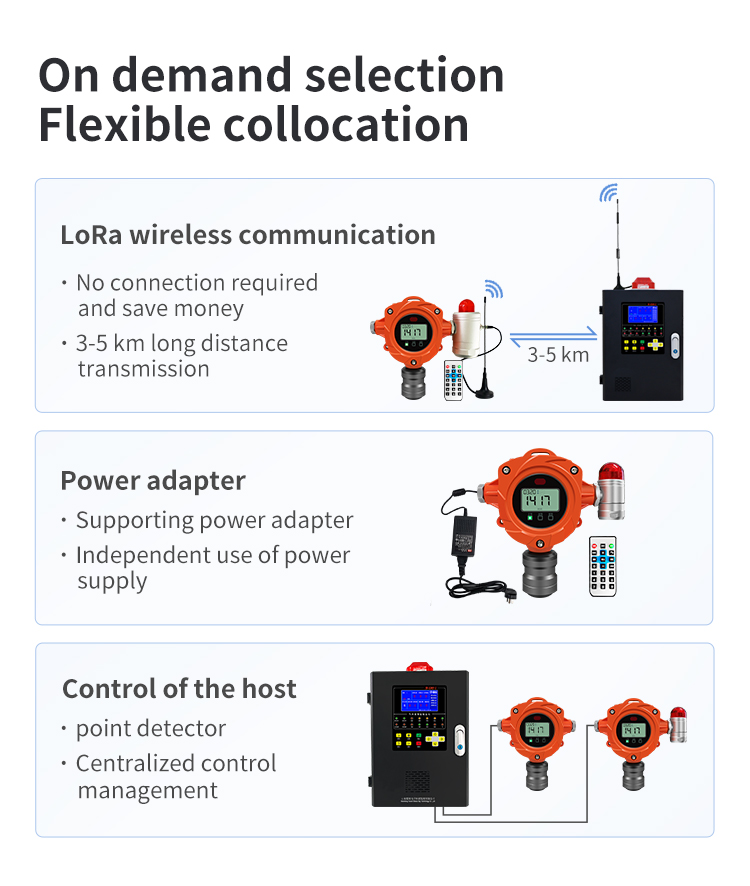

Second paragraph: Our company has developed the YA-D400 series point type gas detector with practicality and ease of use in mind. The product is compatible with our gasalarm controller YA-K series, allowing for an industrial gas alarm system to be set up. The detector can be wall-mounted or alternatively fixed in place using tube, scaffolding or ceiling-type installations. Utilizing a controller and single chip microcomputer, the gas detector data is uploaded and processed to display, output and control the detected gases.
Our company has developed the YA-D400 series point type gas detector with practicality and ease of use in mind.
The product is compatible with our gasalarm controller YA-K series, allowing for an industrial gas alarm system to be set up.
The detector can be wall-mounted or alternatively fixed in place using tube, scaffolding or ceiling-type installations.
Utilizing a controller and single chip microcomputer, the gas detector data is uploaded and processed to display, output and control the detected gases.
Technical Parameters:
| Parameter | Description |
| Industrial gas detector | Fixed Gas Detector |
| Sensor type | Combustible: Catalytic Combustion Type; Toxic: Electrochemical Type (imported Sensor) |
| Class of protection | IP67 |
| Minimum reading | Combustible: 1% LEL; Toxic: 0.1μmol/mol(determined By Sensor) |
| Output Signal | 4-20 MA, Modbus |
| Dimension | 205*209*84mm |
| Installation Method | Pipeline Type Wall Mounting Type |
| Power supply and power | Power Supply 24V; Combustible: ≤4W; Oxygen/Toxic: ≤3W |
| Output signal | 4-20m Acurrent Signal, Corresponding To Full Scale |
| Material | Die-casting Aluminum |
| Gas Unit | PPM, Mg/m3, Vol%, LEL% |
| Gas Monitor | Industrial gas detector |
Applications:
The minimum reading level of the YAOAN YA-D400 Fixed Gas Detector is Combustible: 1% LEL; Toxic: 0.1μmol/mol(determined By Sensor). The output signal is a 4-20m A current signal that corresponds to full scale. The installation method is Pipeline Type Wall Mounting Type, which makes it easy to install and use. The gas unit is available in PPM, Mg/m3, Vol%, LEL%, which allows the user to choose the most appropriate unit for their specific needs.
The YAOAN YA-D400 Fixed Gas Detector can be used in a variety of applications and scenarios. It is ideal for use in manufacturing plants, petrochemical facilities, oil refineries, and other industrial environments where toxic and combustible gases are present. The product can be used to detect a wide range of gases, including methane, propane, hydrogen, carbon monoxide, and more.
The YAOAN YA-D400 Fixed Gas Detector is a reliable and accurate gas analyzer that can be used to monitor gas levels in real-time. The output signal of the product is 4-20 MA, Modbus, which makes it compatible with a variety of different systems. The product is designed to operate continuously and can be used in harsh environments.
In summary, the YAOAN YA-D400 Fixed Gas Detector is an industrial gas detector that is ideal for use in a variety of industries and applications. The wall-mounted gas sensor is easy to install and use, and the product is known for its accuracy and reliability. The gas analyzer can detect a wide range of gases and can be used in harsh environments.
Support and Services:
Our Fixed Gas Detector product comes with comprehensive technical support and services to ensure optimal performance and reliability. Our team of experienced technicians is available to assist you with installation, calibration, troubleshooting, and maintenance. In addition, we offer training programs to help your staff understand the product's features and capabilities. Our support services include remote assistance, on-site support, and spare parts replacement. We are committed to providing timely and efficient solutions to keep your operations safe and efficient.
